Quick Details

  • Brand Name: SIMPLE
  • Model Number: XP92M(Latest)
  • Type: roller shutter motor
  • Frequency: 50HZ/60HZ, 50Hz
  • Output Power: 580W-980W
  • Protect Feature: CLASS H
  • Phase: Single-phase
  • Certification: CCC, CE
  • AC Voltage: 110V 120V 220V 230V
  • Place of Origin: Zhejiang, China (Mainland)
  • Efficiency: Class H
  • Model: XP92M
  • Brand: Simple
  • Torque: 140N.m,180N.m, 230N.m,300N.m,330N.m
  • Tube Diameter: 92mm
  • Current: 2.6A-4.5A
  • Running time: S2 4min
  • Speed: 9/12rpm
  • Power: 580W-980W
  • Voltage: 110V,230V

Packaging & Delivery

Packaging Details carton and pallet
Delivery Time 20days

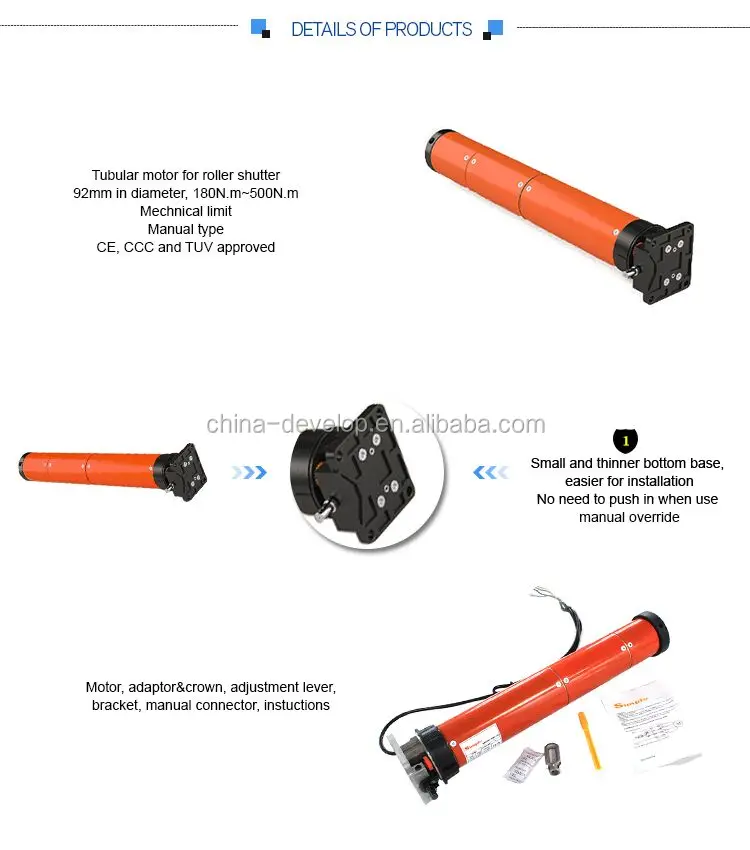

XP92mm Electric motor for roll up door



  Latest type!  NO NEED TO PUSH IN WHEN USE MANUAL OVERRIDE



•Easy installation and operation.
•Accurate limiting.
•It is suitable for roller shutters and windows,roller doors,awnings,window shaades,etc.
•Fews are the Built-in receiver and AC motor.
•Low noise.
•Streamline and metallic in design.Beautiful and artistic appearance.



•base is different.



•Our tubular motors have excellent quality.Best price,Good after-sales services.Please feel



free to contact us.













Rated torque     (N.m)Rated Voltage  (V)Rated Frequency    Rated Power Input             Tube Diameter
180N.m230V50HZ626W92MM
230N.m230V50HZ830W92MM
300N.m230V50HZ920W92MM
330N.m230V50HZ980W92MM
500N.m230V50HZ980W92MM
Rated Current (A)Running time (Min)         Rated Speed(Rpm)       Protection Index(IP)Insulation class
2.8A4MIN12RPMIP44Class H
3.8A4MIN12RPMIP44Class H
4.2A4MIN9RPMIP44Class H
4.5A4MIN9RPMIP44Class H
4.5A4MIN5.5RPMIP44Class H
