roller shutter tubular motor

FOB Reference Price:Get Latest Price
US $30-50 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month
Port:
Ningbo/Shanghai
Report Suspicious Activity
Overview
Quick Details
Brand Name:
SIMPLE
Model Number:
XP59S(Traditional)
Type:
Asynchronous Motor
Frequency:
50HZ
Output Power:
310W
Protect Feature:
Waterproof
Phase:
Single-phase
Certification:
CCC, CE
AC Voltage:
208-230 / 240 V
Place of Origin:
Zhejiang, China (Mainland)
Efficiency:
IE 1
Name:
tubular motor
Color:
Required
Usage:
Household Appliance
Speed:
15rpm/12rpm/9rpm
Protection class:
IP44
Voltage:
110/220V
frequency:
50/60hz
torque:
60N.m~150N.m
diameter:
59mm
power:
310w~390w
Packaging & Delivery

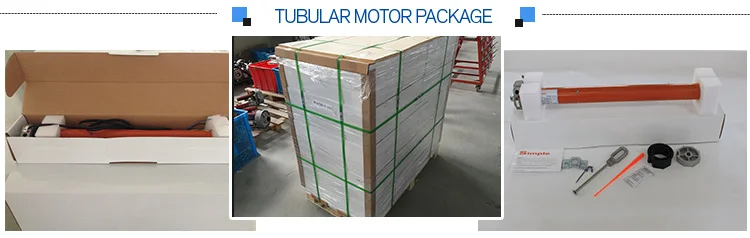

Packaging Details
carton and pallet
Delivery Time
20days

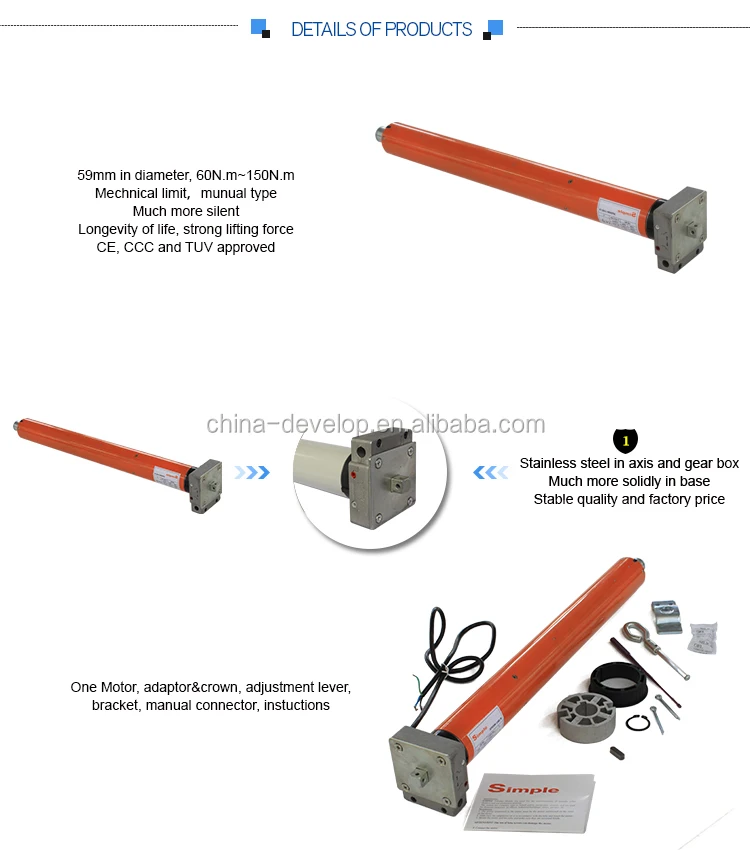

roller shutter tubular motor



1. The max. Lift capacity reached 300kg with different size of tubes

2.   electromagnetic brake system are adopted to make sure the motor security

3.   Manual override devices ensure the normal operating in case of emergency and power failure

4. 5 year of warranty











Torque

(N.m)

Voltage

(v)

Frequency

(hz)

power input

(w)

diameter

(mm)

current

(A)

Running time

(min)

speed

(rpm)

protection index

(IP)

Insulation class

XP59M

Manual

60N.m

23050310591.40S2 4min15IP44

Class H

80N.m23050330591.45 S2 4min12 IP44 Class H
100N.m23050350591.55 S2 4min12 IP44 Class H

120N.m

23050365591.60 S2 4min12 IP44 Class H
140N.m23050380591.74 S2 4min9 IP44 Class H
150N.m23050395591.78 S2 4min9 IP44 Class H
